Multichannel Surround
- DTS HD Master / DTS:X / DTS:X Pro Yes / Yes / Yes (update)
- DTS Neo:X / DTS Neural:X No / Yes (11ch)
- DTS Virtual:X Yes
- IMAX Enhanced Yes
- Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music Yes / Yes / Yes / Yes
- Dolby ProLogic Ilz / Dolby Surround No / Yes
- Auro 3D Yes
- 360 Reality Audio / MPEG H No
- Audyssey DSX No
- Multichannel Stereo Yes
- Max Number of Processing (Preamp) Channels 13.2
Sound Enhancements
- Mono Block Power Amp Construction Yes (L/R separated)
- Discrete Power Amplifier Yes
- D.D.S.C. HD Digital Yes (32 bit)
- Pure Direct Yes
- Gold Plated RCA Terminals Yes
- Clock Jitter Reducer Yes
- Alpha Processing AL32 Processing Multichannel
- Denon Link HD Yes
- Audyssey MultEQ XT32
- Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
- Audyssey LFC Yes
- Compressed Audio Restorer Yes
Network
- Media Server Yes
- HEOS Wireless Multi-Room Technology Yes
- Bluetooth Re-transmit for Bluetooth headphones No
- Alexa / Google Voice Assistant / Apple HomePod Yes / Yes / Yes
- Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes
- Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
- Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
- DSD Audio Streaming Yes (2.8/5.6MHz)
- FLAC HD 192/24 Yes
- WAV 192/24 Yes
- ALAC 192/24 Yes
- Gapless playback Yes (FLAC, WAV, ALAC ,DSD)
- Photo Streaming (JPEG) No
- AirPlay Audio Streaming Yes (AirPlay2)
- Internet Radio Yes (TuneIn)
- Spotify* Yes (connect)
- Pandora Yes
- SiriusXM Yes
-
Other Streaming Services
Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix - Roon Tested Yes
- HEOS App Control Yes
- Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote
- Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
- Ethernet Ports Yes
- Wi-Fi Yes
- Bluetooth Yes
HDMI
- HDMI Inputs: Back / Front 7 / 1
- HDCP2.3 support Yes
- HDMI Outputs: Main / Zone 2 / 1
- Video Conversion Analog -> HDMI Yes
- Analogue to HDMI scaling up to 8K 60/50
- HDMI to HDMI Scaling up to 8K 60/50
- GUI Overlay on HDMI Yes / Yes
- HDMI: 8K/60Hz AB / 4K/120Hz AB Yes / Yes
- HDMI 2.0: 3D / 4K / CEC / ARC / InstaPrevue Yes / Yes / Yes / Yes / No
- Enhanced ARC Yes
- HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR Yes / Yes / Yes / Yes / Yes
- ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
- Variable Refresh Rate / Quick Flame Transport / Quick Media Switching Yes / Yes / Yes
- 3D Signal Pass-through Yes
- 8K signal pass-through / scaling / GUI overlay Yes / Yes / Yes
- 4K Signal Pass-through / Scaling / GUI Overlay Yes / Yes / Yes
- HDMI pass-though in standby mode Yes
- Picture Adjust / Noise Reduction Yes / Yes
- CEC Yes
- DSD Audio Capability Yes
- Audio Return Channel Yes
- Auto LipSync Yes
Multi-room CI
- Multiroom zones 3
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
- Zone Audio Output: Speaker / Preout Yes / Yes
- Zone HDMI Output from HDMI Source Yes
- IP Control / RS232 Control / Web Control / App Control Yes / Yes /Yes / Yes
- Remote In / Out Yes / Yes
- DC Trigger Output 2
- HDMI Diagnostics Yes
Others
- Auto Speaker Setup by Microphone Audyssey MultEQ XT32
- FL Display 2 lines
- Graphic User Interface - GUI Advanced
- ISF Certification Yes
- GUI Languages 3
- Setup Assistent Yes
- Quick Select Plus / Quick Select Yes / No
- Firmware Update by: Network / USB Yes / Yes
- Variable Cross Over Yes
- Optimized Bass Redirection Yes
- Bass Sync Yes
- ECO Mode Yes
- Auto Power Off Yes
- Sleep Timer Yes

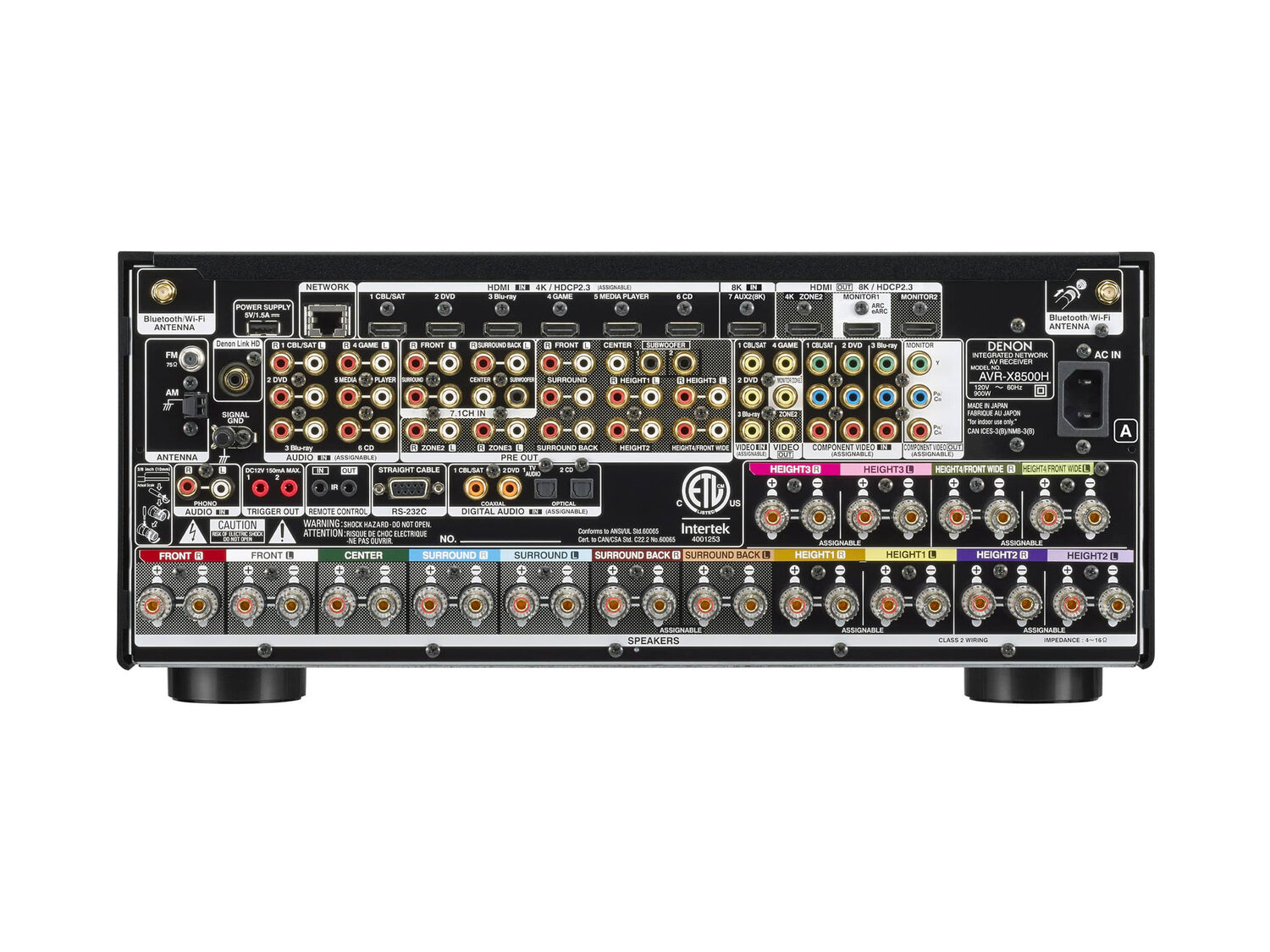

Inputs Outputs
- Composite In / Out 4 / 2
- Component In / Out 3 / 1
- HDMI In / Out 7+1 / 3
- Multi-room Video Out: Video / HDMI Yes / Yes
- Analogue In/out 6 / No
- Phono (MM) In Yes
- Digital In: Optical / Coaxial 2 / 2
- Multi-room Out: Analog / Digital 2 / No
- Multichannel Pre-out Yes (15.2)
- Subwoofer Out 2 (independent)
- 7.1 Multichannel Input Yes
- Speaker Terminal: Gold Plated Screw / Regular Screw Yes / No
- Number of Speaker Terminals 15
- Speaker A / B assignable
- Bi-amp Drive assignable
- Multi-Room Speaker Terminal assignable
- Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / Yes / Yes
- USB Audio / Made for iPod / Made for iPhone Yes / No / No
- AM/FM Tuner Yes
Specifications
- Number of Power Amps 13
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) No
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) 150 W
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 190 W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 260 W
General
- Metal Front Panel Yes

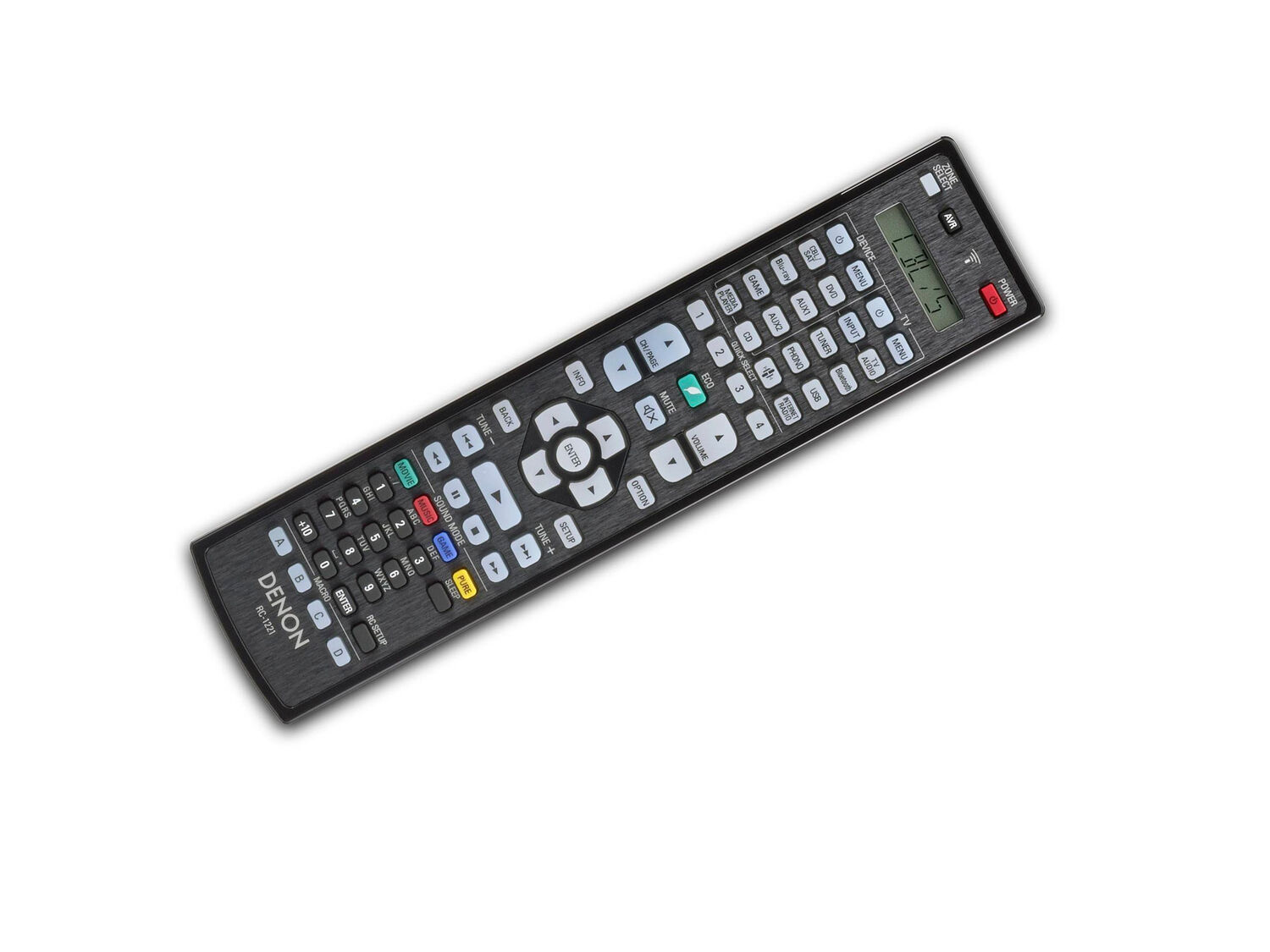

- System Remote Control RC-1221
- Pre-programmed / Learnable / LCD Display Yes / Yes / Yes
- Power Consumption in W 900
- Power Consumption No-Sound (ECO On / Off) in W 70 W / 125 W
- Standby Consumption in W 0.1
- CEC Standby Consumption in W 0.5
- Network Standby Consumption in W 3.5
-
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
( Antenna:Vertical :(W x D x H) in mm)
【 w/o Antenna :(W x D x H) in mm】 17.1 x 19 x 7.7
( 17.1 x 19 x 10.2 )
【 17.1 x 18.6 x 7.7 】 - Carton Dimensions (Packaging) (W x D x H) in Inches) 22.4 x 21.2 x 12.9 (in)
- Weight in LBS 52
- Weight in LBS (Packaging) 60
- Power Supply AC 120 V, 60 Hz
- Speaker impedance 4 - 16Ω/ohms
- Preamplifier section
- Input sensitivity 200 mV
- Frequency response 10 Hz - 100 kHz — +1, –3 dB (Direct mode)
- S/N Ratio 102 dB (IHF-A weighted, Direct mode)
- FM section (Tuning frequency range) 87.5 - 107.9 MHz
- AM section (Tuning frequency range) 520 kHz – 1710 kHz
