Description Overall
- Colors Glacier White & Midnight Black
- Transducers 10” long-throw woofer

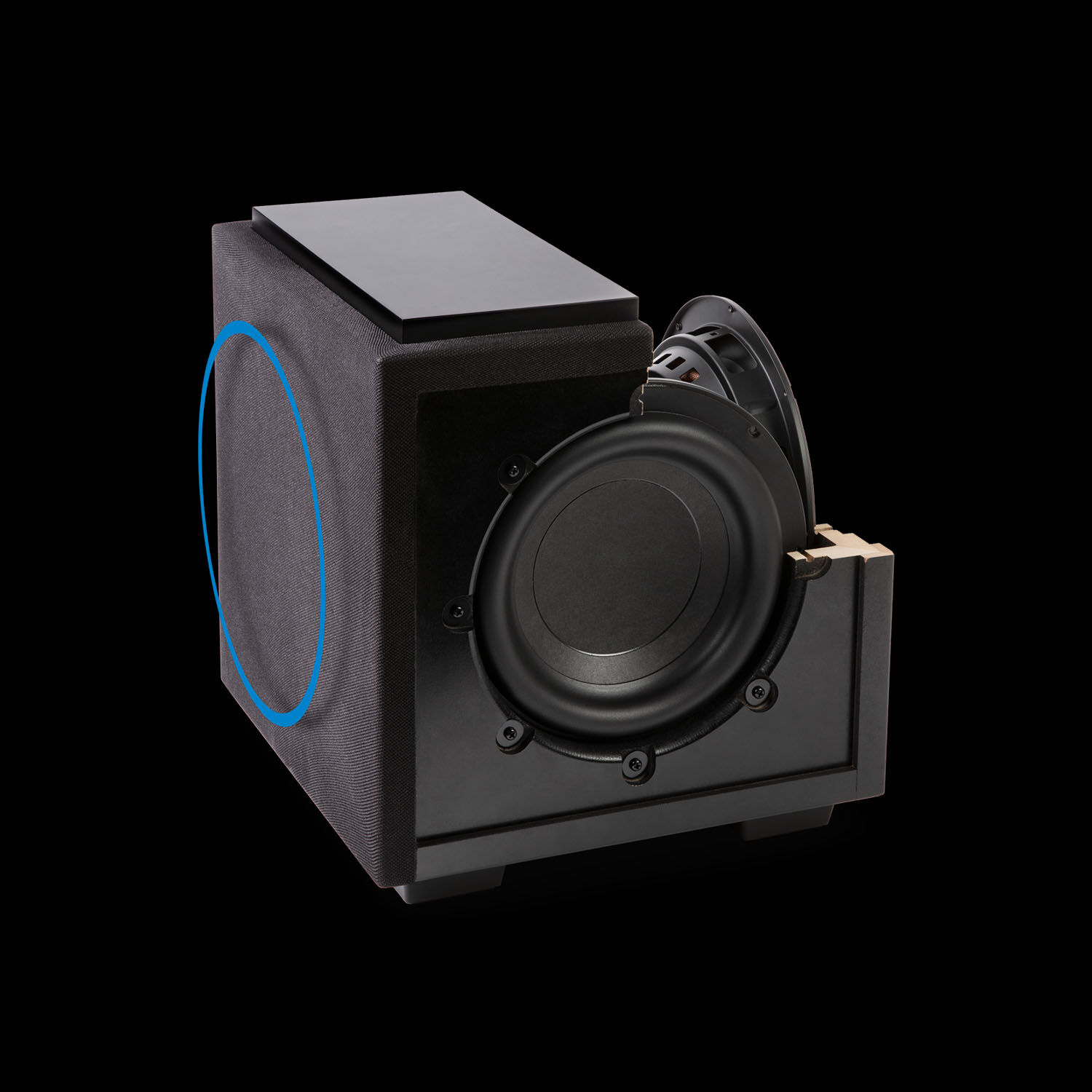

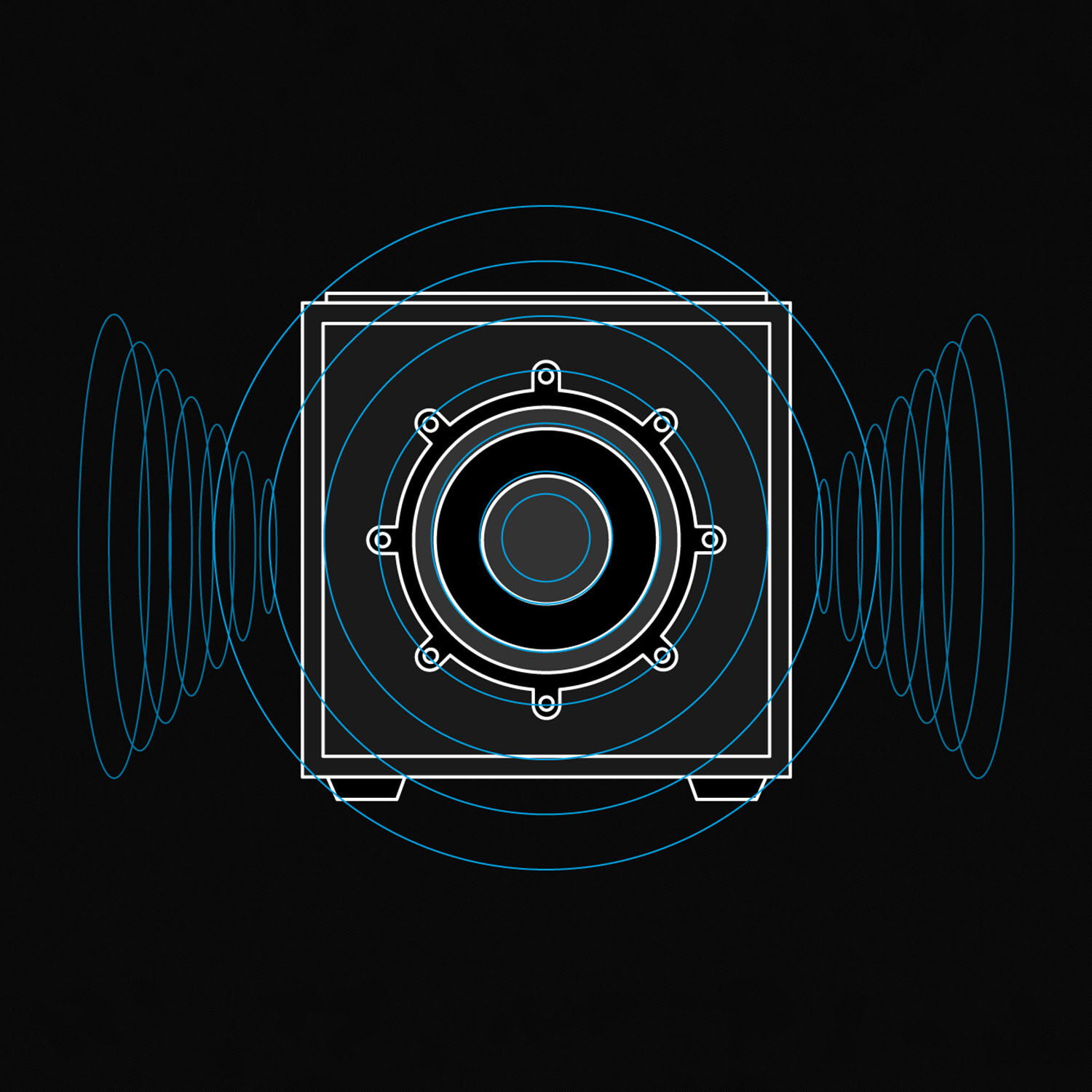

- Passive radiators Dual 10” 3XR™ Configuration
- Bass type Bass Radiator
- Feet Permanently Installed Feet with Rubber Pad (no leveling)
-
Dimensions
16.8” x 16.0” x 17.1”
425.4 x 407.4 x 433.2 mm
Performance

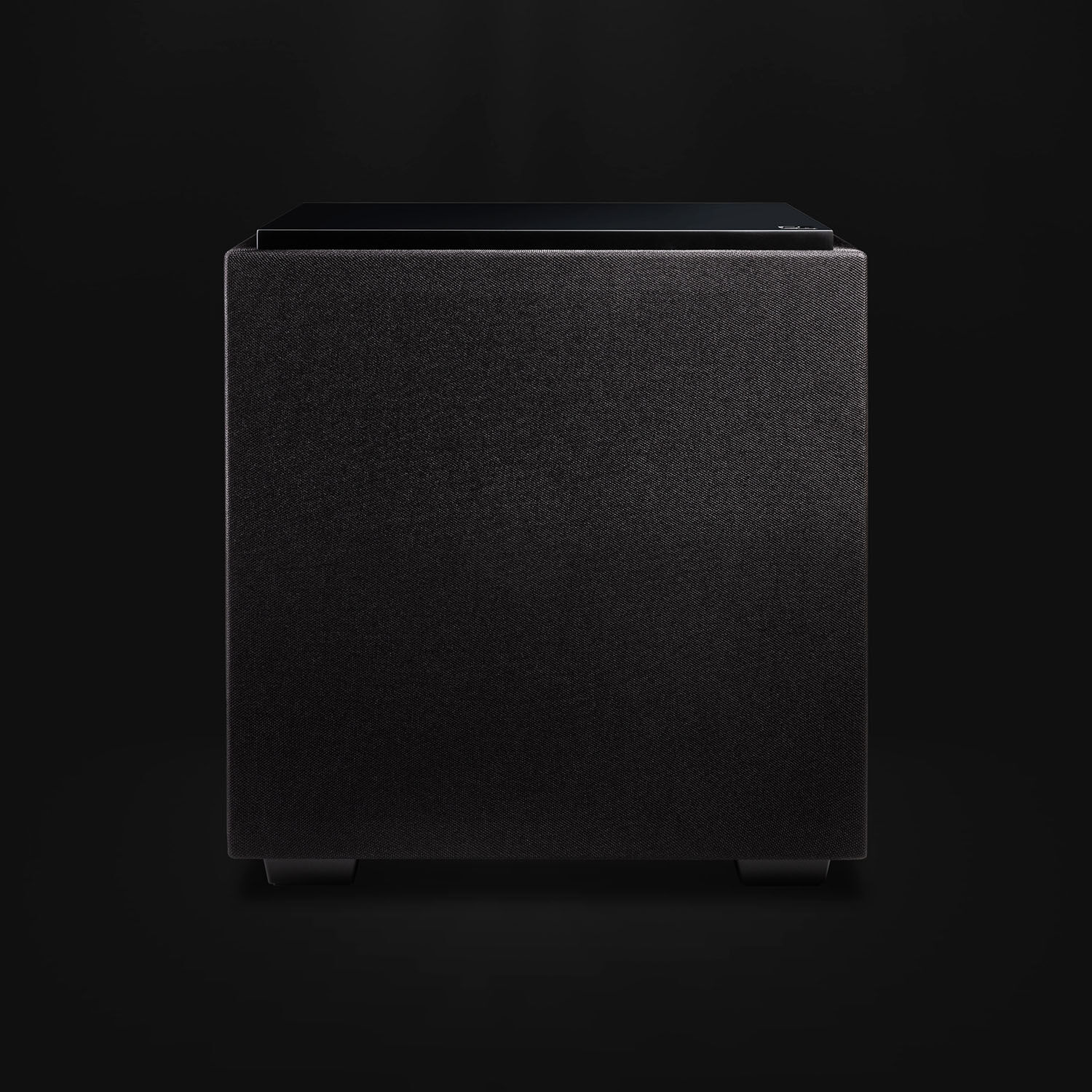

- Amplifier type Class D
- Frequency response (+/- 3 dB) 28 Hz → 200 Hz
- Low-Pass crossover freq 60 Hz → 120 Hz
- Phase adjustment 0 / 180
-
Power supply
Internal
IEC 3 prong Jack
120V/240V switch - Europe (<.5W Compliance) Yes

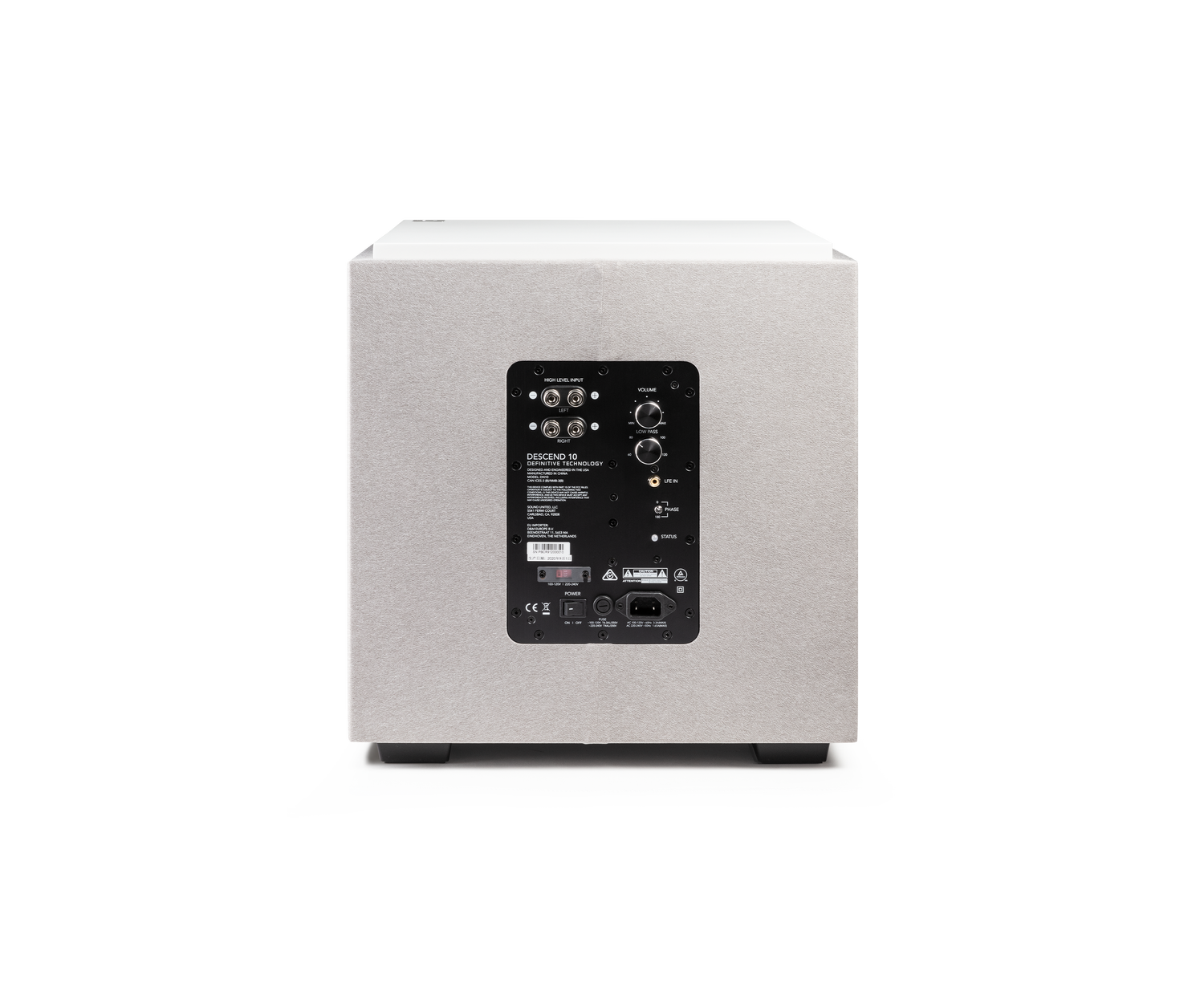

Inputs
- LFE Single RCA
- Speaker Left/Right 5-Way binding posts

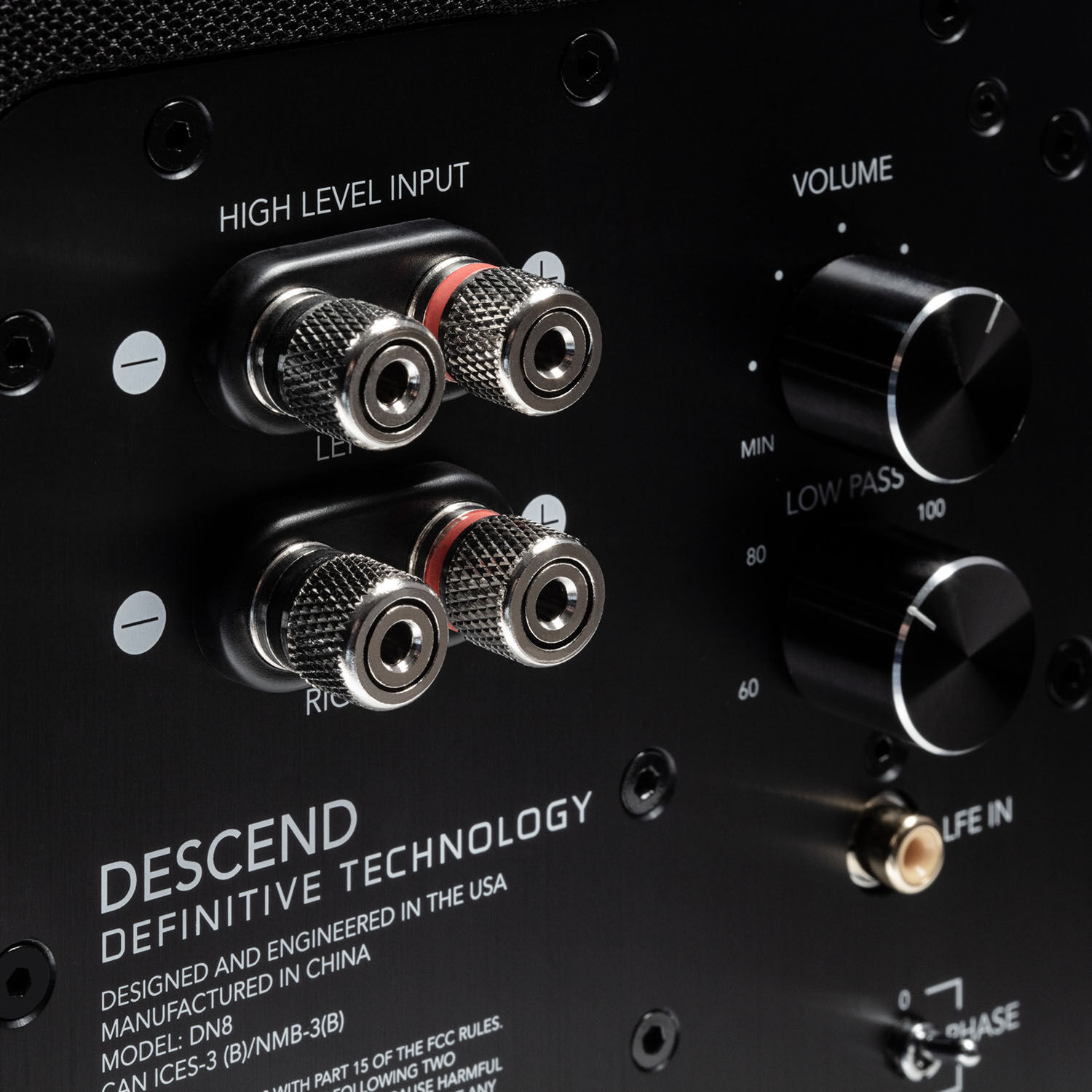

Controls
- Main power Auto/Off
- Volume control Potentiometer w/ center detent
- Low pass control Potentiometer w/ center detent
- Phase control 2-way Switch
- Status RGB LED On back panel
- Warranty Drivers 5 years. Amplifier 3 years
